Product Description
Introducing the new UL certified 5-shelf 7.5 cu ft. vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is the secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty. With our new internal shelf heating technology, each shelf in these ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption. Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses. These vacuum ovens are ideal for use in combination with our PPW2V10 vacuum pump Pro Package which includes all the necessary parts and spares to support your vacuum oven.
Features
- UL certified
- New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
- All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.

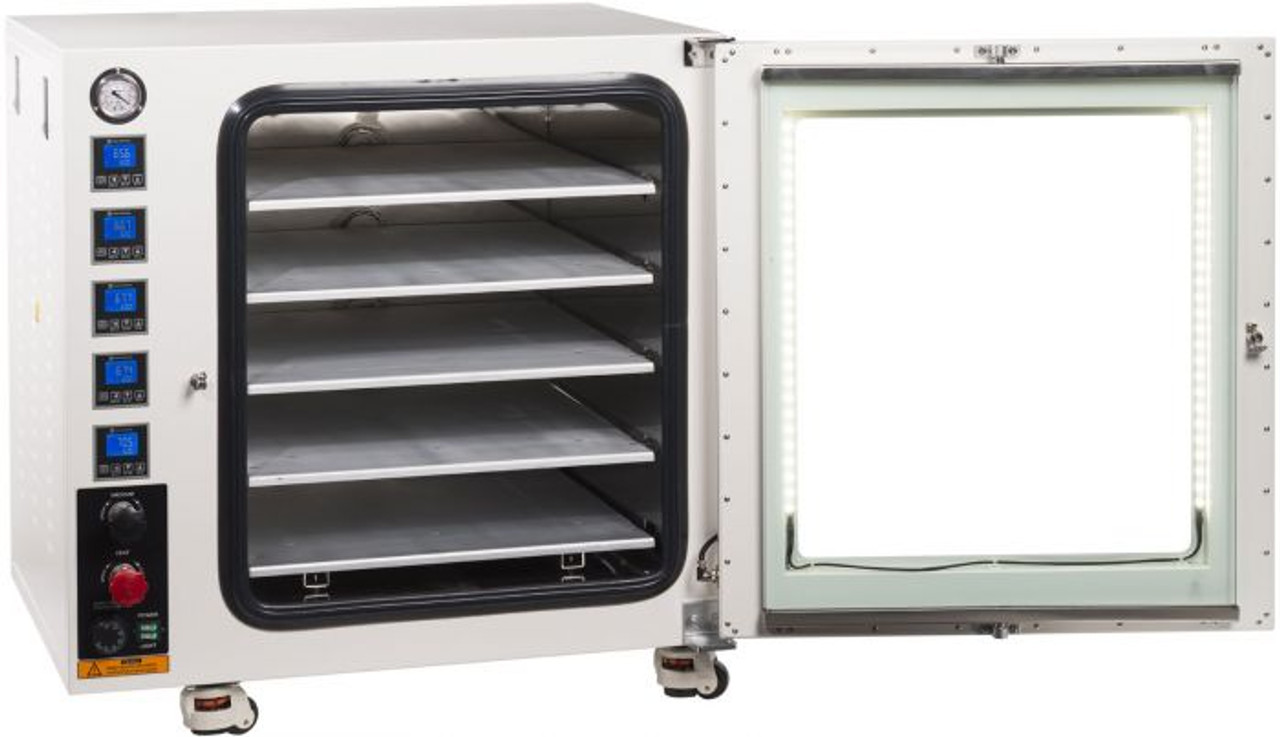

- Five aluminum heating shelves with individual in-shelf temperature sensor, heater and digital temperature controller.
- 4th gen low proportional gain temperature controllers keep your oven temperature accurate.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- Dual layer observation window with 3/4" tempered safety glass.
- 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- Built-in swivel casters with leveling feet.
- For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
- All ovens shipped from our New Jersey or Nevada location for quick delivery.
- 2-year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance within 30 minutes from our engineers.
Manufactured in accordance with
- UL 61010-1
- CSA C22.2
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
- CE
Specifications
| Electric |
110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts or 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts |
| Heater | 300 watts x 5, built into 5 aluminum shelves, for the fastest, most energy efficient and uniform heating |
| Chamber |
Size: 22 x 23.5 x 25" Material: Stainless steel Capacity: 7.5 cubic feet |
| Temperature control | Controller: low proportional gain, microcomputer PID controlled with LCD display Range: ambient to 250°C (or 480°F) Display units: Fahrenheit or Celsius Uniformity: +/- 5% of setpoint Dwelling timer range: 1 to 9999 minutes Warm-up time to 100°F: 45 minutes Warm-up time to 480°F: 2 hours 15 minutes |
| Vacuum |

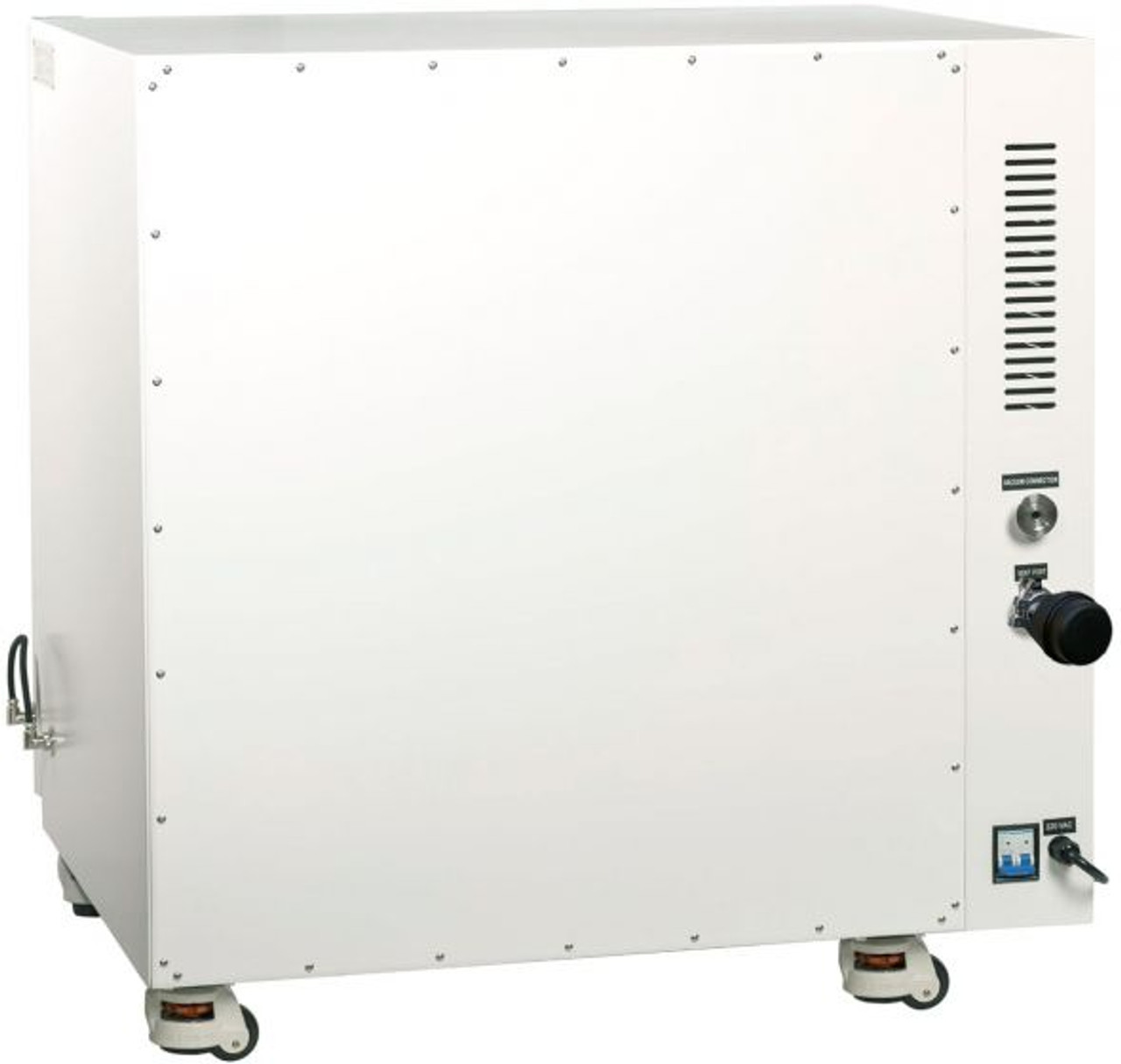

Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude, click here to learn more) Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: KF25 flange x 1 Vacuum pump: Sold separately |
| Weight | Unit: 410 Lbs, shipping: 630 Lbs |
| Dimensions (WxDxH) | Unit: 34.5 x 33 x 35.5" Shipping: 40 x 39 x 43" |
| Shelves |
Heated shelves: 5 non-removable aluminum shelves, 22 x 23.25" (WxD) each Optional stackable aluminum shelves: 22 x 23.25 x 2.25" (WxDxH) Total area without stackable shelves: 512 x 5 = 18 sq ft or 2560 sq inch Total area with 5 stackable shelves: 512 x 10 = 36 sq ft or 5120 sq inch Distance between shelves (without stackable shelves): 4.5 inches Distance between shelves (with 5 stackable shelves): 2.25 inches Max. load capacity per shelf: 20 Lbs |
| Door gasket material | Silicone or Viton |
| Observation window | 1/2" tempered safety glass |
| Safety |
Built-in circuit breaker Overheat shutoff protection Secondary over-temp protection dial |
| In-door lights | White LED |
| Warranty | 2 years |
| Compliance | UL (E482564), CE |
