Service Liquid Line

FLUIDX offers stainless steel, fully assembled Service Liquid Lines. Our Service Liquid Lines come ready to install (with appropriate connection to inlet) and are designed so that you have more control of the vacuum within your pump. Liquid ring vacuum pumps depend on a continuous supply of clean service liquid, which is most commonly water. The liquid enters the pump through a connection on the casing and is discharged from the pump along with the gas. The liquid is separated from the gas in the separator and discharged to a drain or is recirculated with the installation of a liquid ring separator tank.

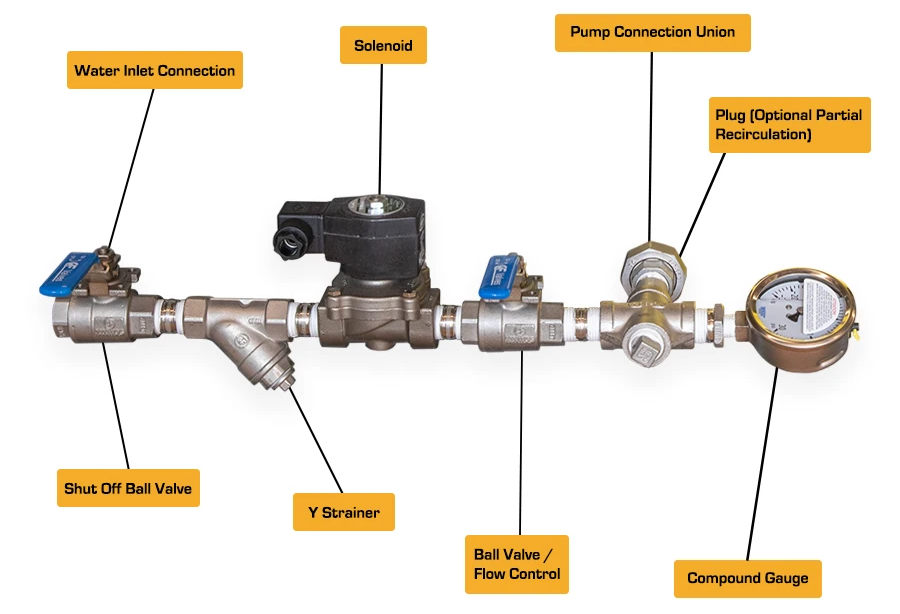

Below you can find a table of our Service Liquid Line connection sizes and a diagram of components. If you have any questions call us at 801-486-1015.

LIQUID RING VACUUM PUMP PACKAGE
LIQIUD RING SERVICE LINE

*Additional fittings may be required to connect service line to pump water connection.

SERVICE LIQUID LINE

SIZE

MATERIAL

VOLTAGE

LRSL

050 (½”)

SS

120V220V, 24VDC

LRSL

750 (¾”)

SS

120V220V, 24VDC

LRSL

100 (1”)

SS

120V220V, 24VDC

LRSL

125 (1 ¼”)

SS

120V220V, 24VDC
