Product Description

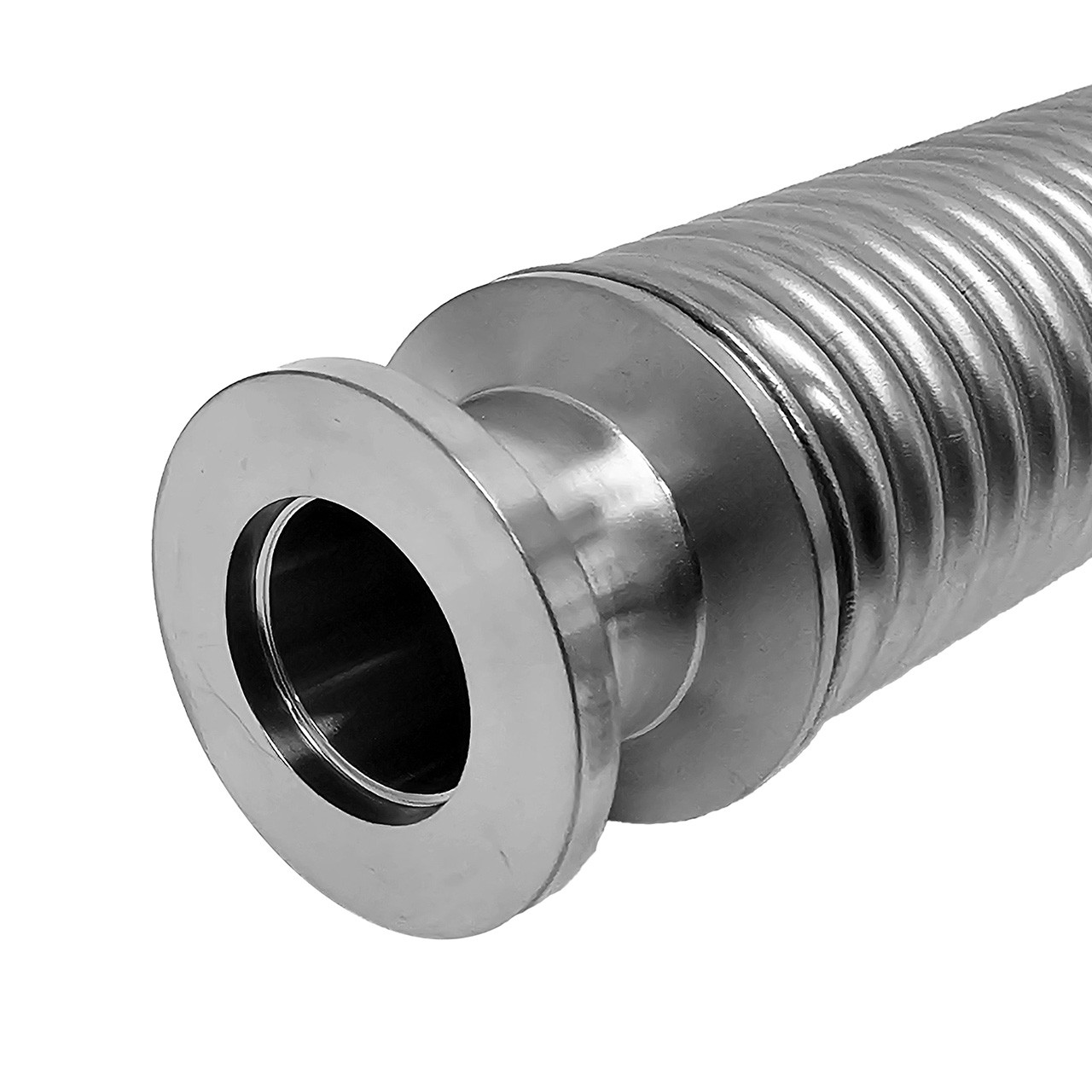

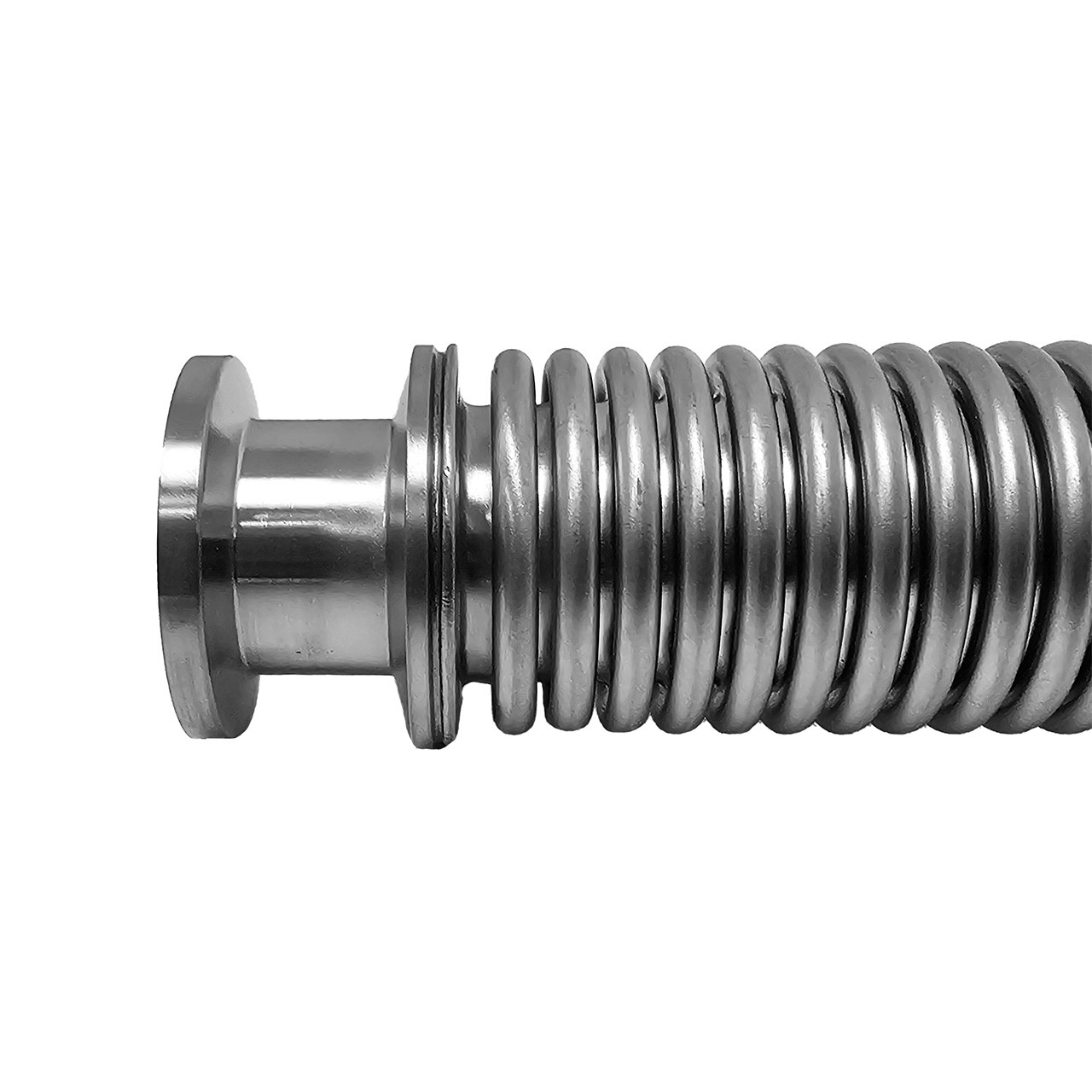

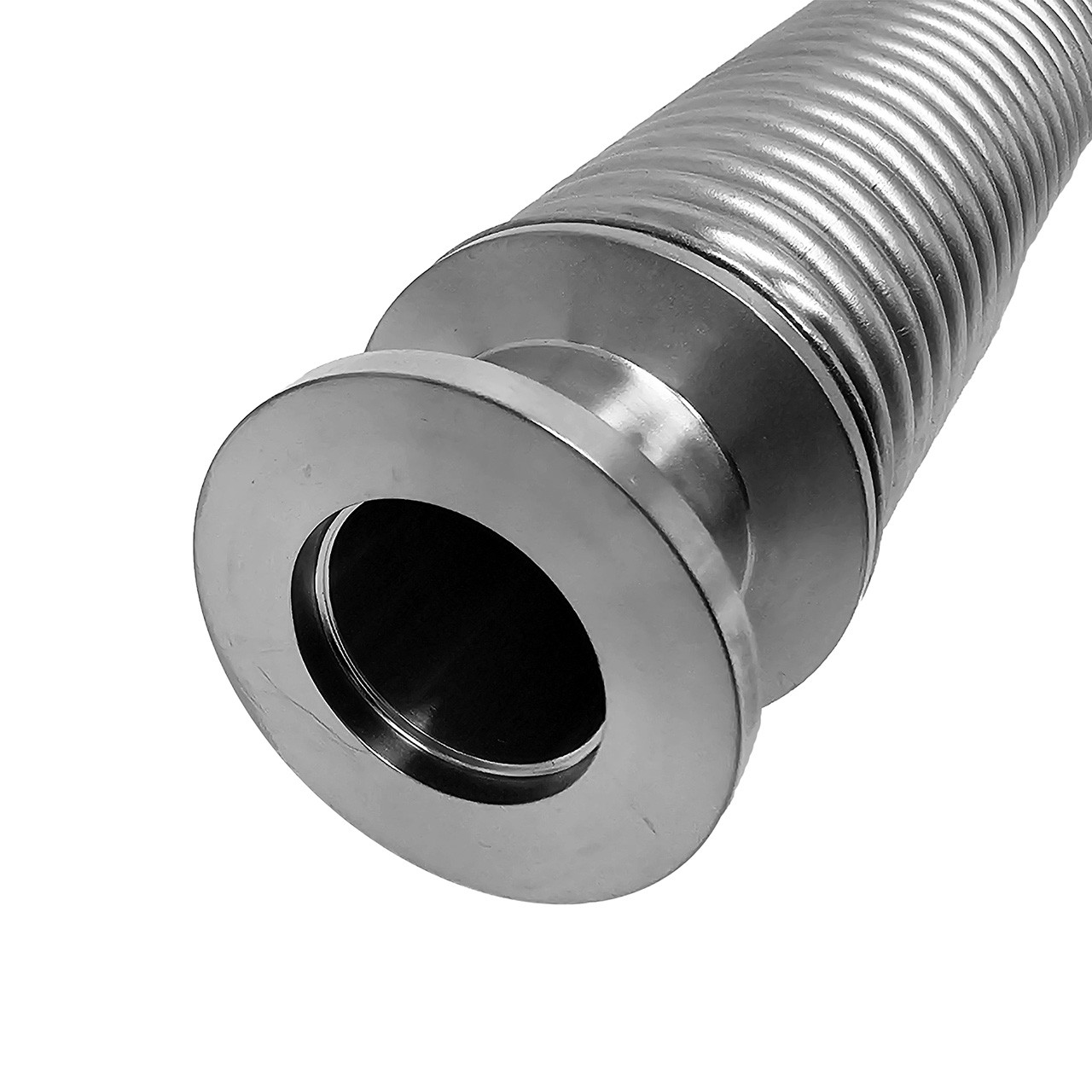

NW16 x 9.8" (250mm) Medium Wall (.008) Stainless Steel Metal Hose.
Medium walled metal hose (often called quick flange fittings) contain a circumferential clamp and centering ring that form the vacuum seal between the connection flanges. Hose is constructed of corrosive resistant stainless steel, and centering ring contains a rubber elastomer O-ring. This type of metal hose is often used in foreline vacuum plumbing and process systems.
- Dimensions: NW16 flange x 9.8" length
- Thickness: (.008)
- Material: Stainless Steel
- Spring Rate: 27 lb/in
