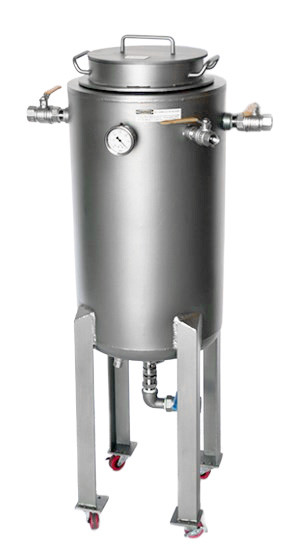

    LIT-1524-X Inline Dry Ice Trap

    Contact us for pricing: 801-486-1015 or info@fluidxinc.com

    (You save )
    (No reviews yet) Write a Review
    SKU:
    LIT-1524-X

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Overview
    • Reviews

    Product Description

    Designed for simple operation and easy maintenance, our dry ice vacuum traps are ideal for vacuum applications requiring the removal of condensable vapors, or where the use of a liquid nitrogen traps is not practical. Offset inlet and outlet ports for ease of installation and a removable well makes for convenient cleaning and refilling.

    Pump Protection

    Our dry ice traps remove water and solvents and protect oil-sealed vacuum pumps and critical vacuum equipment. Utilizing a dry ice and alcohol slurry, our dry ice traps cool to -75° C, trapping most volatile materials.

    • Protects vacuum pumps and critical vacuum equipment
    • Easy defrost, cleaning and refilling
    • Clear acrylic lid to monitor condensation during operation
    • Offset inlet and outlet ports for ease of installation

    Description

    • Inner Chamber (Dry Ice Slurry)
      Top is removable for cleanout and filling of inner chamber with dry ice slurry.
    • Top support lid to be 304 SS. (No acrylic or aluminum lids)
    • Inner 304 SS Chamber Reservoir 10.75" OD by 22" height. Inner chamber to hold dry ice slurry at atm.
    • Inner Chamber to be glass bead blasted. Inner chamber to include a drain port and connection to outer chamber for drainage.
    • Stainless steel lid cover will be included on inner chamber.
    • Inner chamber (dry ice slurry) volume = 8 gallons.
    • The inner chamber does not need to be removed. Piping through the bottom of the slurry chamber goes through the outer chamber at the bottom and a compression fitting allows for the vacuum requirement to be fulfilled.
    • Outer Chamber (Vacuum)
      Ports on outer chamber to include 2ea 1" NPT vacuum ports with manual valves and 1ea 1/2" NPT vent port with manual valve. Ports at same level.
    • 1ea 1/4" NPT port with 0-30inHG vacuum gauge,
    • 1ea 1/2" NPT drain port with manual valve for outer vessel and 1ea 1/2" NPT drain port with manual valve for inner vessel.
    • Outer chamber (vacuum) volume = 8 gallons
    • uter Chamber to be glass bead blasted. Inner chamber to be removable.
    • hamber is helium leak tested to < 10-8 atm-cc/sec and is rated to vacuum levels of 10-3 torr or 29.9 inHg.
    • The outer chamber has a valve welded in to the bottom, allow for draining without removing the inner chamber.
    • Outer chamber will also have two each baffles mounted 90 degrees apart running length wise from top to 2" from bottom.

    Specifications

    • Custom Vacuum Dry Ice Trap 304 SS Vertically Oriented
    • Outer Chamber cylinder sized 15" O.D. by 24" height
    • Inner chamber size 10.75" OD by 22" heigh
    • Inlet and Outlet - 1" NPT
